General Specifications
|
|
Name
|

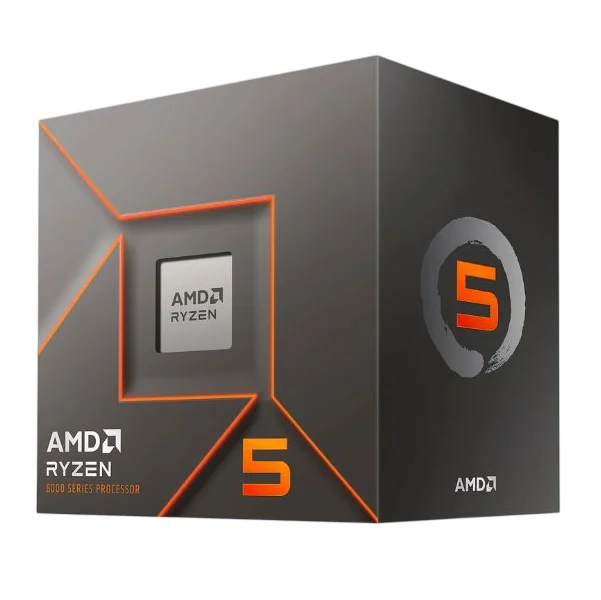

AMD Ryzen™ 5 8400F |
|
Family
|
Ryzen |
|
Series
|
Ryzen 8000 Series |
|
Form Factor
|
Desktops |
|
AMD PRO Technologies
|
No |
|
Consumer Use
|
Yes |
|
Regional Availability
|
Global |
|
Former Codename
|
Phoenix |
|
Architecture
|
Zen 4 |
|
# of CPU Cores
|
6 |
|
Multithreading (SMT)
|
Yes |
|
# of Threads
|
12 |
|
Max. Boost Clock
|
Up to 4.7 GHz |
|
Base Clock
|
4.2 GHz |
|
L2 Cache
|
6 MB |
|
L3 Cache
|
16 MB |
|
Default TDP
|
65W |
|
AMD Configurable TDP (cTDP)
|
45-65W |
|
Processor Technology for CPU Cores
|
TSMC 4nm FinFET |
|
CPU Compute Die (CCD) Size
|
178mm² |
|
Unlocked for Overclocking
|
Yes |
|
AMD EXPO™ Memory Overclocking Technology
|
Yes |
|
Precision Boost Overdrive
|
Yes |
|
Curve Optimizer Voltage Offsets
|
Yes |
|
AMD Ryzen™ Master Support
|
Yes |
|
CPU Socket
|
AM5 |
|
CPU Boost Technology
|
Precision Boost 2 |
|
Instruction Set
|
x86-64 |
|
Supported Extensions
|
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSSE3 , SSE4.1 , SSE4.2 , SSE4A , x86-64 |
|
Max. Operating Temperature (Tjmax)
|
95°C |
|
Launch Date
|
4/1/2024 |
|
*OS Support
|
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
Connectivity
|
|
Native USB 4 (40Gbps) Ports
|
2 |
|
Native USB 3.2 Gen 2 (10Gbps) Ports
|
2 |
|
Native USB 2.0 (480Mbps) Ports
|
1 |
|
PCI Express® Version
|
PCIe® 4.0 |
|
Native PCIe® Lanes (Total/Usable)
|
20 , 16 |
|
NVMe Support
|
Boot , RAID0 , RAID1 |
|
System Memory Type
|
DDR5 |
|
Memory Channels
|
2 |
|
Max. Memory
|
256 GB |
|
System Memory Subtype
|
UDIMM |
|
Max Memory Speed
|
|
|
DDR5-5200
|
|
|
DDR5-5200
|
|
|
DDR5-3600
|
|
Graphics Capabilities
|
|
Graphics Model
|
Discrete Graphics Card Required |
|
AMD SmartAccess Memory
|
Available |
