| LA SERIE |
Serie S |
| MODELO |

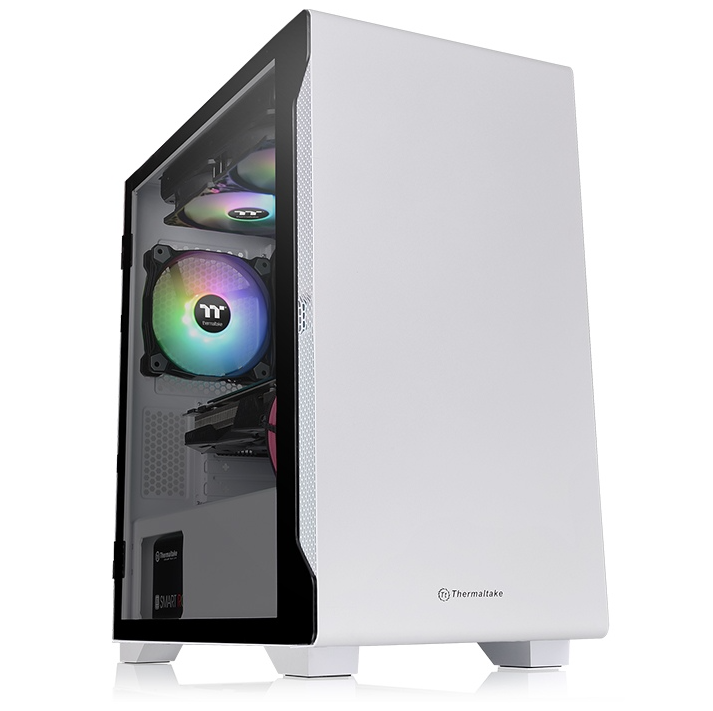

S100 TG Snow |
| TIPO DE CAJA |
Micro Case |
| DIMENSIONES (AL X AN X PR) |
441 x 220 x 411 mm |
| |
(17.36 x 8.66 x 16.18 inch) |
| PESO NETO |
6.1 kg / 13.45 lbs. |
| PANEL LATERAL |
Tempered Glass x 1 |
| COLOR |
Exterior & Interior: White |
| MATERIAL |
SPCC |
| SISTEMA DE REFRIGERACIÓN |
Rear (exhaust) : |
| |
120 x 120 x 25 mm fan |
| |
(1000rpm, 16 dBA) |
| BAHÍAS DE EXPANSIÓN |
2 x 2.5” (HDD Bracket); 2 x 3.5“ or 2 x 2.5” (HDD Rack); |
| RANURAS DE EXPANSIÓN |
4 |
| PLACAS BASE |
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), |
| PUERTOS E/S |
1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio, |
| FUENTE DE ALIMENTACIÓN |
Standard PS2 PSU (optional) |
| COMPATIBILIDAD VENTILADORES |
Front: |
| |
3 x 120mm, 2 x 140mm |
| |
Top: |
| |
2 x 120mm, 2 x 140mm, 1 x 200mm |
| |
Rear: |
| |
1 x 120mm, |
| COMPATIBILIDAD RADIADORES |
Front: |
| |
1x 240mm, 1 x 280mm |
| |
Top: |
| |
1 x 240mm, 1x 280mm |
| |
Rear: |
| |
1 x 120mm, |
| LIMITACIONES |
CPU cooler height limitation: 165mm |
| |
PSU length limitation: 160mm |
| |
VGA length limitation: 330mm |
