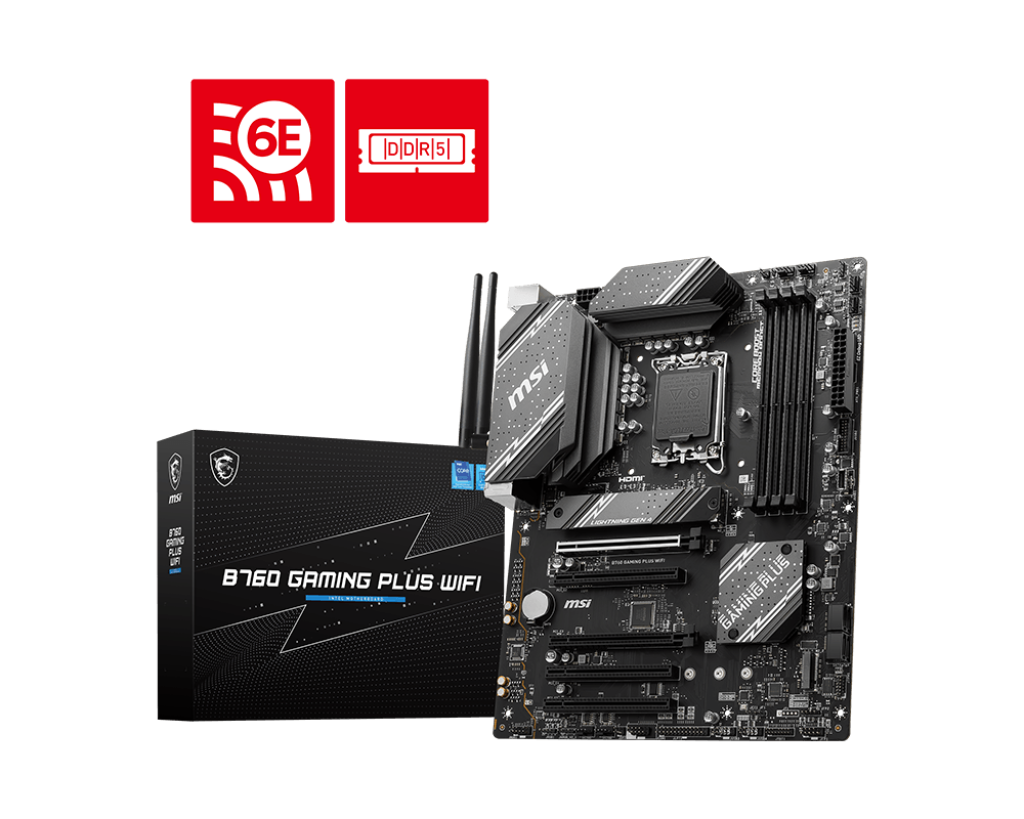

| CHIPSET |
INTEL B760 |
| CPU |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
| |
LGA 1700 |
| MEMORY |
4x DDR5, Maximum Memory Capacity 256GB |
| |
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| |
Max. overclocking frequency: |
| |
• 1DPC 1R Max speed up to 6800+ MHz |
| |
• 1DPC 2R Max speed up to 6400+ MHz |
| |
• 2DPC 1R Max speed up to 6000+ MHz |
| |
• 2DPC 2R Max speed up to 5600+ MHz |
| |
|
| |
Supports Intel® XMP 3.0 OC |
| |
Supports Dual-Controller Dual-Channel mode |
| |
Supports non-ECC, un-buffered memory |
| |
|
| ONBOARD GRAPHICS |
1x HDMI™ |
| |
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* |
| |
1x DisplayPort |
| |
Support DP 1.4, maximum resolution of 4K 60Hz* |
| |
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| SLOT |
5x PCI-E x16 slot |
| |
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
| |
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| |
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| |
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| |
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| STORAGE |
2x M.2 |
| |
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices |
| |
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| |
4x SATA 6G |
| |
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB |
4x USB 2.0 (Rear) |
| |
4x USB 2.0 (Front) |
| |
2x USB 3.2 Gen1 Type A (Front) |
| |
1x USB 3.2 Gen1 Type C (Front) |
| |
2x USB 3.2 Gen2 Type A (Rear) |
| |
1x USB 3.2 Gen2 Type C (Rear) |
| LAN |
Realtek® RTL8125BG 2.5G LAN |
| WIRELESS LAN & BLUETOOTH |
Intel® Wi-Fi 6E |
| |
The Wireless module is pre-installed in the M.2 (Key-E) slot |
| |
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps |
| |
Supports 802.11 a/ b/ g/ n/ ac/ ax |
| |
|
| |
Supports Bluetooth® 5.3, FIPS, FISMA |
| |
|
| |
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. |
| |
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| AUDIO |
Realtek® ALC897 Codec |
| |
7.1-Channel High Definition Audio |
| |
Supports S/PDIF output |
| INTERNAL IO |
1x Power Connector(ATX_PWR) |
| |
2x Power Connector(CPU_PWR) |
| |
1x CPU Fan |
| |
1x Pump Fan |
| |
5x System Fan |
| |
2x Front Panel (JFP) |
| |
1x Chassis Intrusion (JCI) |
| |
1x Front Audio (JAUD) |
| |
1x Printer Port (JLPT) |
| |
1x Com Port (JCOM) |
| |
1x TBT connector (JTBT, supports RTD3) |
| |
2x Addressable V2 RGB LED connector (JARGB_V2) |
| |
1x RGB LED connector(JRGB) |
| |
1x TPM pin header(Support TPM 2.0) |
| |
4x USB 2.0 ports |
| |
2x USB 3.2 Gen1 Type A ports |
| |
1x USB 3.2 Gen1 Type C ports |
| LED FEATURE |
4x EZ Debug LED |
| BACK PANEL PORTS |
Keyboard / Mouse |
| |
DisplayPort |
| |
2.5G LAN |
| |
USB 2.0 |
| |
Wi-Fi / Bluetooth |
| |
Audio Connectors |
| |
USB 2.0 |
| |
HDMI™ |
| |
USB 3.2 Gen 2 10Gbps (Type-A) |
| |
USB 3.2 Gen 2 10Gbps (Type-C) |
| |
S/PDIF-OUT |
| |
|
| OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB INFO |
ATX |
| |
243.84mmx304.8mm |
