HARDWARE FEATURES
|
| Interface |
4 10/100/1000Mbps RJ45 LAN Ports, 1 SC/APC GPON Port, 1 RJ11 FXS Port |
| Button |
Power On/Off Button, WPS/Wi-Fi Button, RESET Button |
| External Power Supply |
12V/1.5A |
| Antenna |
2 External Dual Band Antennas |
WIRELESS FEATURES
|
| Wireless Standards |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency |
2.4GHz and 5GHz (not Supports DFS) |
| Signal Rate |
867Mbps at 5GHz, 300Mbps at 2.4GHz |
| Transmit Power |
2.4GHz: 26dBm(EIRP), 5GHz: 27dBm(EIRP) |
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security |
WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions |
| Wireless Schedule |
Support 2.4GHz and 5GHz Wireless Schedule |
| Mesh Technology |
WPA EasyMesh, TP-Link OneMesh |
SOFTWARE FEATURES
|
| Quality of Service |
Hardware QoS |
| Security |
NAT Firewall, Access Control, MAC/IP/URL Filtering, IP and MAC Address Binding, Defense “Denial of Service (DoS), SYNFlooding, Ping of Death” |
| Management |
Web Based Configuration(HTTP), Remote management, Command Line Interface, SSL for TR-069, Web Based Firmware Upgrade, Diagnostic Tools, OMCI |
| DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
| Port Forwarding |
Virtual Server, Port Triggering, DMZ, ALG, UPnP |
| Dynamic DNS |
DynDns, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec Pass-through |
| Protocols |
Supports IPv4 and IPv6 |
| VOIP Features |
Call hold, Call forward, Warm call, Do not disturb, Call restriction, Speed dial, etc. Caller ID, 3-party conference, SIP account – up to 8 accounts |
| Advanced Functions |
Parental Control, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3 |
OTHERS
|
| Package Contents |

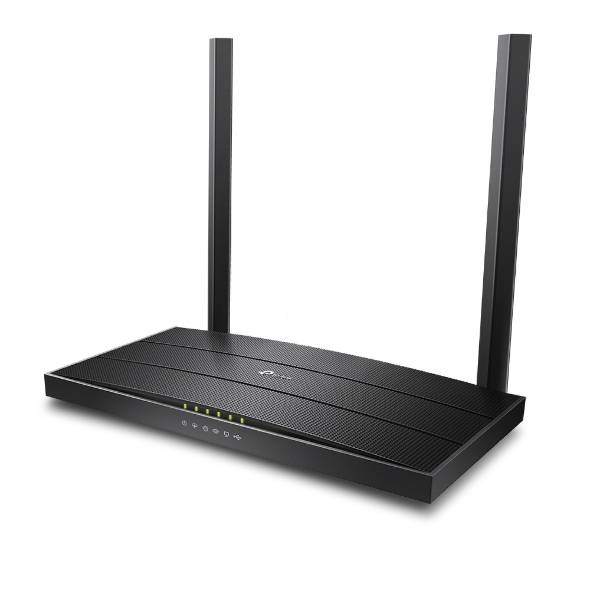

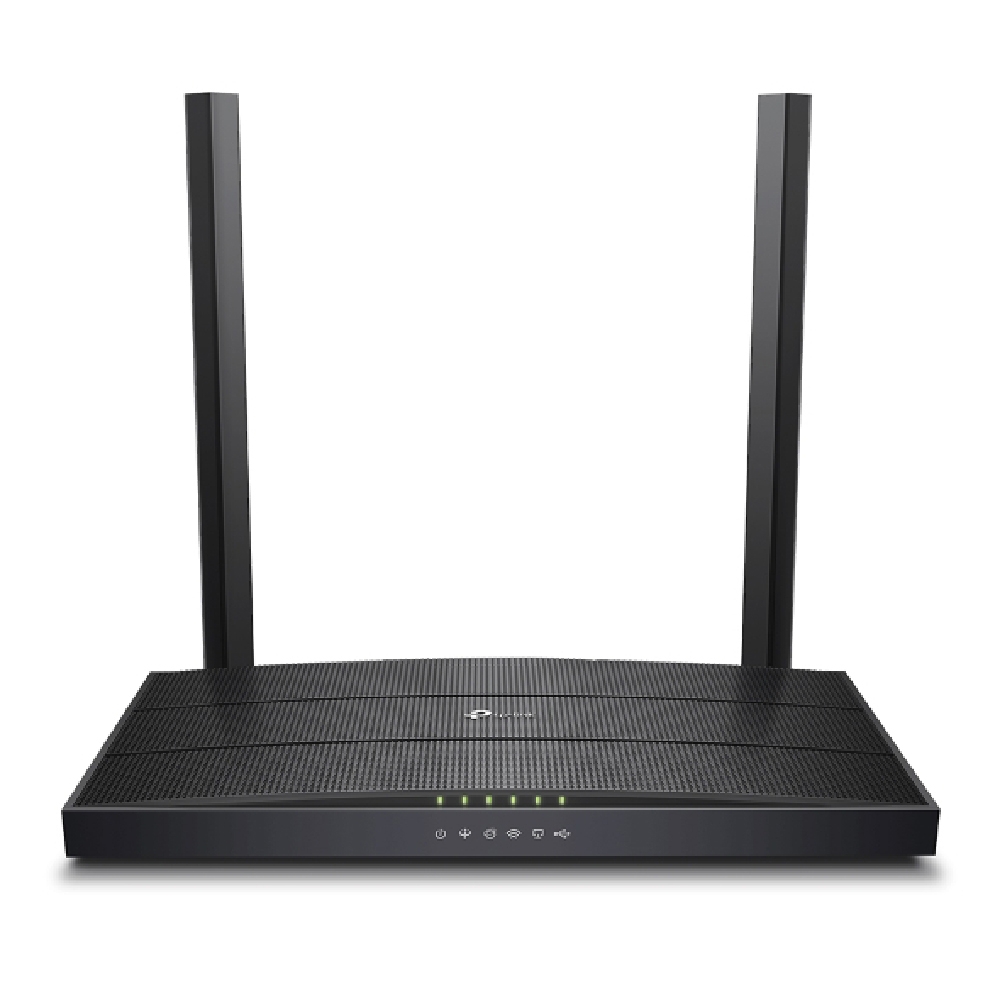

AC1200 Wireless VoIP GPON Router |
| |
RJ45 Ethernet Cable |
| |
Power Adapter |
| |
Quick Installation Guide |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux |
| |
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
| |
Storage Temperature: -40℃~70℃ (-40℉ ~158℉) |
| |
Operating Humidity: 10%~90% non-condensing |
| |
Storage Humidity: 5%~90% non-condensing |
