CARACTERÍSTICAS DE HARDWARE
|
| Interfaz |
1 10/100/1000 Mbps RJ45 WAN Port |
| |
3 10/100/1000 Mbps RJ45 LAN Ports |
| Botones |
Reset Button, WPS/Wi-Fi Button |
| Fuente de Alimentación Externa |
12V/1A |
| Dimensiones |
7.2 × 3.7 × 1.3 in (182.7 × 94 × 33.3 mm) |
| Antenas |
Four External antennas |
|
CARACTERÍSTICAS INALÁMBRICAS
|
| Estándares Inalámbricos |
IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11n/g/b 2.4 GHz |
| Frecuencia |
2.4 GHz and 5 GHz |
| Tasa de Señal |
1201 Mbps on 5 GHz, 300 Mbps on 2.4 GHz* |
| Funciones Inalámbricas |
Enable/Disable Wireless Radio, WMM, Wireless Statistics, Band Steering |
| Seguridad Inalámbrica |
WPA/WPA2/WPA3 encryptions |
| Potencia de Transmisión |
CE: <20dBm (2.4 GHz), <23dBm (5.17 GHz–5.71 GHz)
FCC:<30dBm (2.4 GHz & 5.15 GHz–5.825 GHz) |
| Planificador de Red Inalámbrica |
Support 2.4 GHz and 5 GHz Wireless Schedule |
| Tecnología Mesh |
EasyMesh Compatible, and support 802.11k/v/r |
|
CARACTERÍSTICAS DE SOFTWARE
|
| Características Avanzadas |
Muti-SSID, Guest Network, QoS (Quality of Service), TX Beamforming, MU-MIMO, OFDMA, Airtime Fairness |
| Modo de Funcionamiento |
Router, Access Point |
| Tipo de WAN |
Dynamic IP/Static IP/PPPoE/PPTP/L2TP (Multi-EWAN) |
| Gestión |
Local management: WebGUI management, Aginet app management |
| |
Remote management: Aginet ACS, TR-069, TR-098, TR-181,TR-111, and TR-143 for service providers |
| |
Aginet APP for end user (need to log in wtih TP-Link ID and bind your device to it) |
| DHCP |
Server, DHCP Client List, Address Reservation |
| Reenvío de Puertos |
Virtual Server, Port Triggering, UPnP, DMZ |
| DNS Dinámico |
DynDns, NO-IP |
| VPN Pass-Through |
IPSec, PPTP, L2TP |
| Control de Acceso |
Parental Controls, White List, Black List |
| Seguridad Firewall |
DoS, SPI Firewall, IP and MAC Address Binding |
| Protocolos |
IPv4, IPv6 |
| Servidor VPN |
PPTP, OpenVPN, IPSec |
|
Otros
|
| Contenido del Paquete |

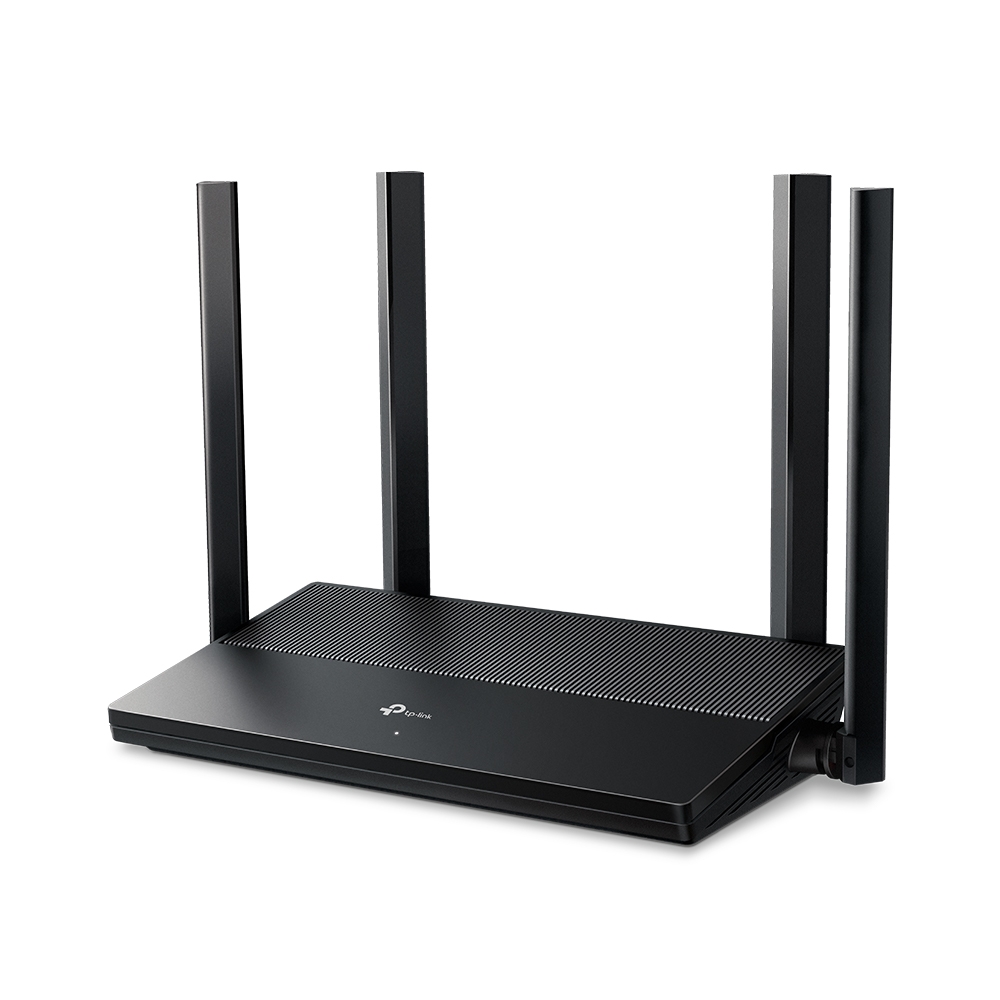

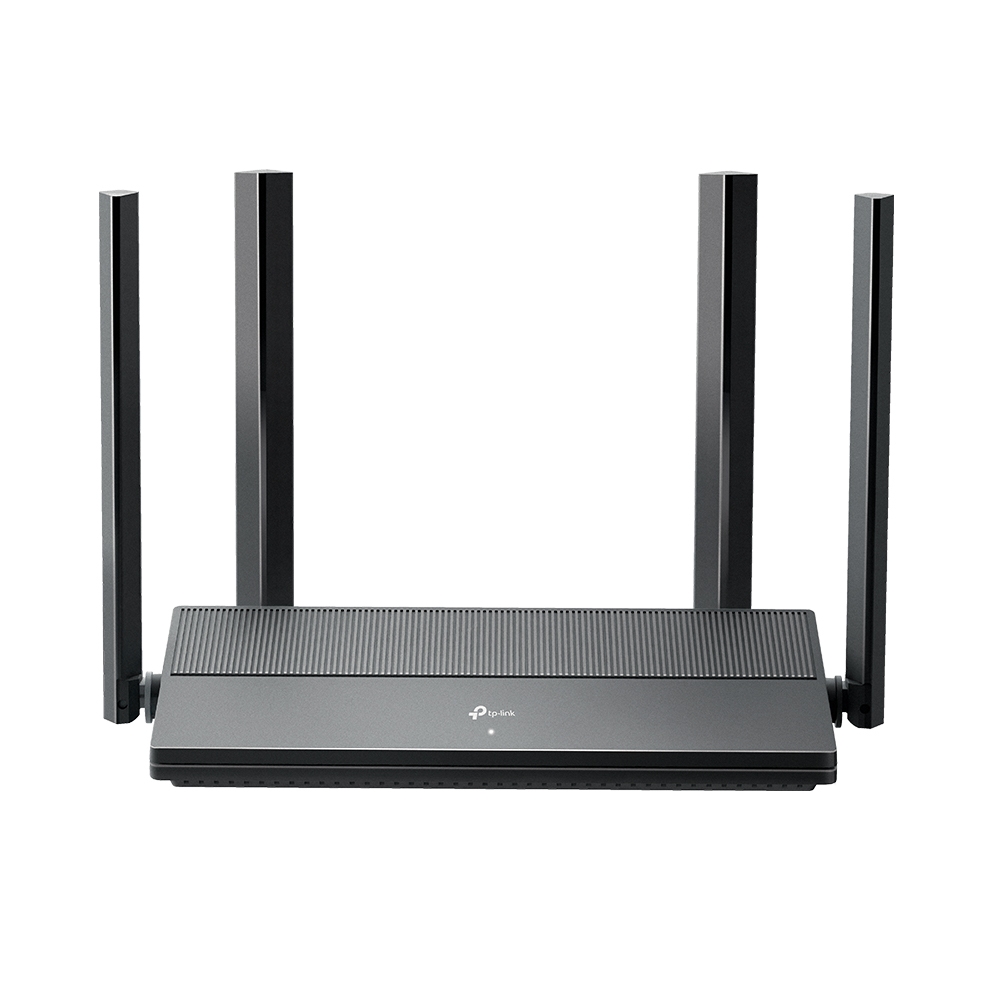

AX1500 Dual Band Gigabit Wi-Fi 6 Router EX141 |
| |
Power Adapter |
| |
RJ45 Ethernet Cable |
| |
Quick Installation Guide |
| Requisitos |
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux |
| |
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| |
Subscription with an internet service provider (for internet access) |
| Factores Ambientales |
Operating Temperature: 0℃–40℃ (32℉–104℉) |
| |
Storage Temperature: -40℃–60℃ (-40℉–140℉) |
| |
Operating Humidity: 10%–90% non-condensing |
| |
Storage Humidity: 5%–90% non-condensing |
