| P/N |
CL-W360-PL12SW-A |
| PUMP |
Speed : PWM 1500~3300 R.P.M |
| |
Rated Voltage : 12 V & 5V |
| |
Rated Current : 0.43 A & 0.32 A |
| |
Power Input : 5.16 W & 1.6 W |
| |
Connector : 2510–4 Pin / 5V ARGB header–3 Pin |

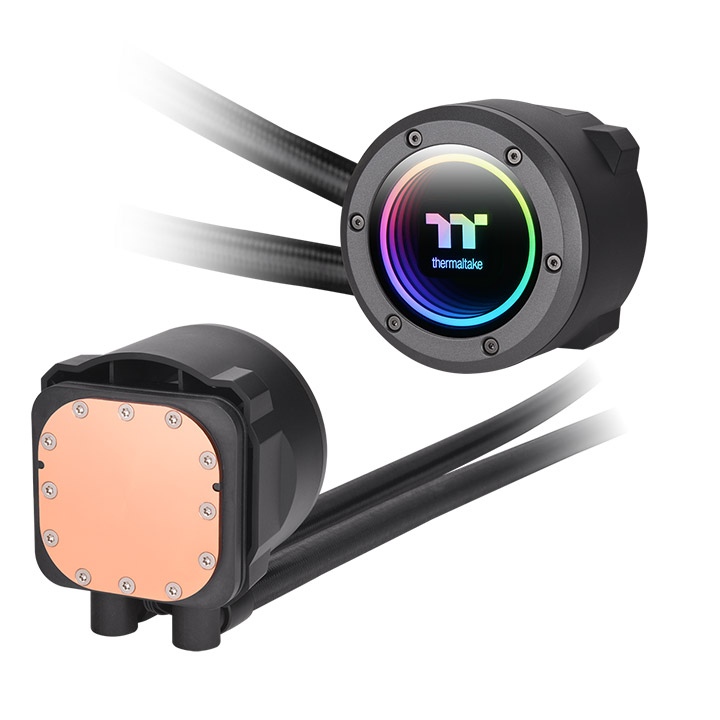

| WATER BLOCK |
Material : Copper |
| FAN |
Dimension : 120 x 120 x 25 mm |
| |
Speed : PWM 500~2000 R.P.M |
| |
Noise Level : 25.8 dB-A |
| |
Rated Voltage : 12 V & 5V |
| |
Rated Current : 0.11 A & 0.31 A (one fan) |
| |
Power Input : 1.32 W & 1.55 W (one fan) |
| |
Max. Air Flow : 57.05 CFM |
| |
Max. Static Pressure : 2.23 mm-H2O |
| |
Connector : 2510 - 4 Pin PWM , 5V ARGB header - 3 Pin |
| |
Bearing Type : Hydraulic Bearing |
| |
Life expectation : 40,000 hrs,25℃ |
| TUBE |
Length : 460 mm |
| |
Material : Rubber |
| RADIATOR |
Dimension : 157 x 120 x 27 mm |
| |
Material : Aluminum |
| COMPATIBILITY |
Intel LGA 1700/1200/1156/1155/1151/1150 |
| |
AMD AM5/AM4/AM3+/AM3/AM2+/AM2 |
